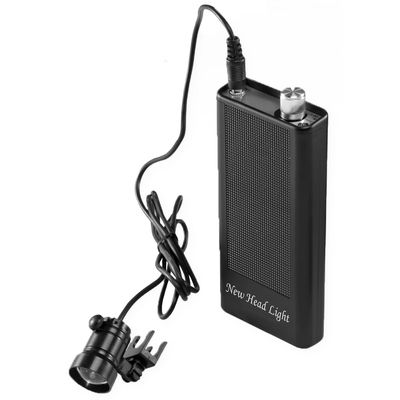

Dental Loupes & Headlights

---

Features

• Good Light spot converging, Better light depth, continuously adjustable spot size and brightness control.
• Unique ergonomics design.

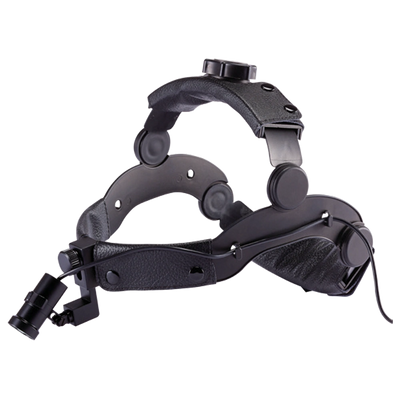

• Helmet is designed for both headlight and loupes use.

Light SV

• Brightness on 30cm distance: 30,000Lux
• Color temperature: 6000(±1000)° K
• Illuminate beam radios on 30cm
• Distance: 80mm
• Dimensions w/o headband): 41Lx21ox34Hmm
• Weight (w/o headband): 23 grams
• Led lifetime: 10,000hours

Controller

• Input: 5V/1000mA
• Battery capacity: 2,600mA
• Full battery charging time: 6 hours
• Average operating time: 5 hours
• Dimensions: 81(L)x66(W)x13(D)mm
• Weight: 112g

Charger

• Type: AC/DC Adapter
• Input voltage: AC100-240V / 50-60Hz
• Wall outlet plug: Euro/US Output
• Power: DC 5V/1000mA

Features

• Loupes Mounted – Extra Light comes with a mount attachment for any Magnification Loupes.
• Daylight – allows the doctor to see tissues and teeth in the oral cavity in their true color, just like in natural day light.
• Narrow Beam – allows the surgeon to illuminate the oral cavity, without dazzling the patient.
• Adjustable Slope Angle – beam's angle can be adjusted up to 18 degrees to fit individual surgeons and tasks.
• Lightweight – Extra light weight just 15grams, applying minimal pressure on the forehead or the nose, when mounted on glasses.

Light

• Brightness on 30cm distance: 40,000 Lux
• Color temperature: 6000(±1000)° K
• Illuminate beam radios on 30cm
• Distance: 100mm
• Dimensions: 31(L)x24(o)x39(H)mm
• Led lifetime: 50,000hours

Controller

• Input: 4.2
• Battery capacity: 3,600mA
• Full battery charging time: 8 hours
• Average operating time: 8.5 hours
• Dimensions: 146(L)x65(W)x23(D)mm
• Weight: 142g

Charger

• Type: AC/DC Adapter
• Input voltage: 100-240V / 50-60Hz
• Wall outlet plug: Euro/US Output
• Power: DC 5V/1000mA
